Oil Burners
Contitherm supplies a wide array of Oil Burners suitable for operation with Oils like:
● LDO (Light Diesel Oil)
● HSD (High Speed Diesel)
● FO (Furnace Oil)
● Kerosene Oil
● Pyro Oil
● Bio Crude Oil

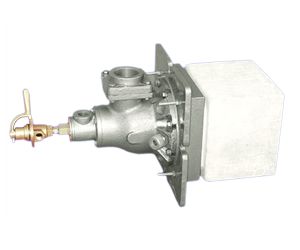

52 Series:
Series 52 forward flame excess air oil burners are used in heat treatment, non-ferrous
melting furnaces, kilns, ovens, air heaters, dryers and chemical process equipment.
They are well suited where superior temperature uniformity is required (For higher
temperature Service, use series 525).
Fuels:
● HSD
● LDO
● Kerosene
● Pyro oil
Capacity range (kW) : 72.5kW - 1140kW Enquiry

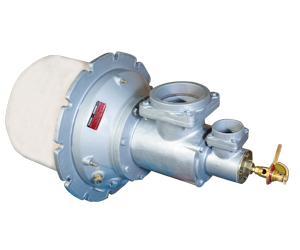

514 Series:
514 Burners are rugged, maintenance- free, sealed-in burners for burning light or heavy
oil for a wide variety of applications. Capable of efficient operation through a wide
temperature range, they are equally at home on low temperature ovens and high
temperature forge and melt furnaces.
Fuels:
● HSD
● LDO
● Kerosene
● Furnace Oil
Capacity range (kW) : 435kW - 6250kW Enquiry

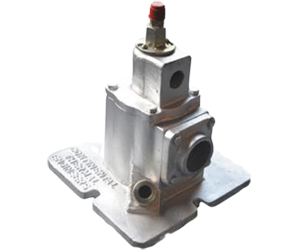

525 Series:
525 Burners are designed specifically for higher temperature operations such as forge furnaces, ceramic kilns, metal and glass melters, heat treat furnaces, etc. They are the high temperature version of Contitherm’s 52 Fire • It is one of the most widely used Industrial burners in the world.
Fuels:
● HSD
● LDO
● Kerosene
Capacity range (kW) :17.5kW - 125kW Enquiry
Self Proportioning Oil Burner (SPOB):
Considerable fuel savings compared to other conventional burners
Single lever to control fuel and air flow simultaneously
Internal parts easily removed for cleaning
First choice of original equipment manufacturers.
Fuels:
● HSD
● LDO
● Kerosene
● Pyro oil
● Furnace Oil
Capacity range (kW) :117.5kW to 1400kW Enquiry
Series 62:
Contitherm Series 62 Dual Fuel Burners are designed to give maintenance free
operation using heavy oil, light oil or gas. It has a heavy cast iron body of clean design
that avoids clogging even when used on tough jobs such as forge furnaces using heavy
oil.
Recommended Fuels:
● HSD
● LDO
● Kerosene
● Pyro oil
● Furnace Oil
Capacity range (kW) : 150kW - 410kW Enquiry
Series 642:
Contitherm Series 642 Dual-Fuel Burners are widely used on heat treat and non-
ferrous melting furnaces, kilns, ovens, air heaters, dryers, chemical process equipment,
and other applications where superior temperature uniformity is required. (For higher
temperature service, specify 625 Burners.)
Fuels:
● LPG
● Natural gas
● Producer gas
● Blast furnace gas
● Biogas
● HSD
● LDO
● Kerosene
● Pyro oil
Capacity range (kW) : 50kW - 1250kW Enquiry
Series 635:
Contitherm Series 635 Burners are High Velocity burners which are best suited for
applications requiring high velocity flames.
WIDE STABILITY RANGE - From 15% excess fuel to 400% excess air.
UNIT CONSTRUCTION - The high temperature tile is secured in the main body section
with no requirement of extra support.
EASY INSPECTION/SERVICE - Air and gas piping need not be removed for complete
access to internals
Recommended Fuels:
● LPG
● Natural gas
Capacity range (kW) : 40kW - 450kW Enquiry
Series 614:
Contitherm Series 614 Dual-Fuel Burners are nozzle mix, sealed in burners for gas,
light oil, or heavy oil. Capable of efficient operation throughout a wide temperature
range. These burners are equally at home on low temperature ovens and high
temperature forge and melting furnaces
Fuels:
● LPG
● Natural gas
● Producer gas
● Blast furnace gas
● Biogas
● HSD
● LDO
● KeroseneLPG
● Furnace Oil
Capacity range (kW) : 450kW - 6300kW Enquiry
CPG Series:
● Adaptability to Low & High calorific value fuel.
● No moving parts and hence reduced maintenance
● Effective oil atomisation due to separate atomising air inlet.
● Oil control by a special Microtrol oil valve.
● Internal parts are easily removable for cleaning.
● First choice of Original Equipment Manufacturers
Fuels:
● Producer gas
● Coke oven gas
Capacity range (kW) : 300kW - 1400kW Enquiry
